Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg Concertina Razor Barbed Wire

Product Categories

Razor Barbed Wire [56]
Continuous Filter Belt Screen [141]
Mine & Quarry Wire Mesh [16]
Chain Link Mesh Fence Roll(Diamond hole ) [128]
Conveyor belt [8]
Gabion box /hexagonal Road Mesh [38]
Peach Fence Mesh [4]
Euro Wire Mesh Fence [23]
3D EPS Panel [11]
Chicken Wire Mesh [90]
Woven Filter Mesh [105]
Cast iron cleaner/chainmail scrubber [50]
Brass/Copper/PB Wire Mesh [41]
garden wire [42]
Aluminum Fly Chain Screens [45]
Metal Mesh Shelf /Basket [43]
Wire Mesh Processed Products [35]
Chain Link Fence Fabric [11]

Xing Kuan Highui Wire Mesh Products Co.,ltd

Contact Now

Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg Concertina Razor Barbed Wire

Place of Origin : Hebei,china

Brand Name : XKh

Certification : iso,ce

Model Number : Razor barbed wire

MOQ : 1 piece

Price : Price based on quantity

Packaging Details : waterproof paper inside , woven bag out side ,pallet or cartn also available

Delivery Time : 7 days

Payment Terms : L/C,TT

Supply Ability : 4 cotainers /week

Material : Hot dipped galvanized iron /steel wire with steel sheet

Core Wire thickness : 2mm-2.5mm

Blade thickness : 0.35mm-0.5mm

Type : BTO-10,BTO-22,BTO-28,BTO-30,CBT-60,CBT-60

Coil diameter : 300mm,350mm,400mm,450mm,500mm,550mm,600mm,700mm,900mm,1050mm

Weight : 3 kg - 15 kg /coil

Surface treatment : Glavanized , PVC coating ,Epoxy

Machine : HIgh speed punching machine

Contact Now

Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg /roll Concertina Razor Barbed Wire

1. Introduction of Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg Concertina Razor Barbed Wire

Razor wire is also named concertina coils or razor type barbed wire. It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel sheets or stainless steel sheets. With beautiful and sharp blades and strong core wire, razor wire has the features of secure fencing, easy installation, age resistance and other properties.

2. Specification of Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg Concertina Razor Barbed Wire

Material:

hot dipped (electro) galvanized wire and stainless steel wire as core wire

hot dipped (electro) galvanized sheet and stainless steel sheet as blade

Surface Treatment : galvanized or PVC coated

Core wire diameter: usually 2.5mm, can be customized

Razor thickness: 0.3-0.6mm

Barb length: 11-67mm

Barb width: 14-23mm

Barb spacing: 25--102mm

Common Types: BTO-10, BTO-20, BTO-22, BTO-28, CBT-65 etc.

Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg Concertina Razor Barbed Wire

Razor Barbed Tape Wire Specification
Outside Diameter	No. of Loops	Standard Length per Coil	Type	Notes
450mm	33	7-8M	CBT-60.65	Single coil
500mm	56	12-13M	CBT-60.65	Single coil
700mm	56	13-14M	CBT-60.65	Single coil
960mm	56	14-15M	CBT-60.65	Single coil
450mm	56	8-9M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
500mm	56	9-10M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	10-11M (3 CLIPS)	BTO-10.12.18.22.28.30	Cross type
600mm	56	8-10M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
700mm	56	10-12M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
800mm	56	11-13M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
900mm	56	12-14M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
960mm	56	13-15M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type
980mm	56	14-16M (5 CLIPS)	BTO-10.12.18.22.28.30	Cross type

Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg Concertina Razor Barbed Wire

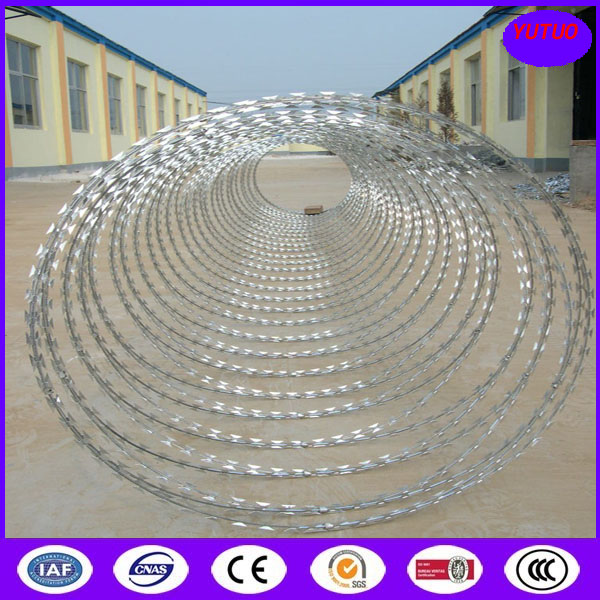

Hot Dipped Galvanized BTO-22 2.5MM 900mm 13 kg Concertina Razor Barbed Wire Images
