Wedge wire screen sand filter nozzle Made in china

Product Categories
Xing Kuan Highui Wire Mesh Products Co.,ltd
Contact Now

Wedge wire screen sand filter nozzle Made in china

Brand Name : XKh

Model Number : Filter Nozzle

Certification : iso,ce

Place of Origin : Hebei,china

Supply Ability : 5000 Set/Sets per Month

Packaging Details : plastic film and then in carton, or as the customer's requirements

MOQ : 1 pc

Payment Terms : L/C,TT

Item : Filter Nozzle

Material : stainless steel 304,316,316L, or as your request

Type : single velocity, double , Fast loading, long hand

Slot : 0.2mm-0.5mm

Diameter : 45mm 55mm 65mm, etc.

Application : Liquid Filter, water-treatment , water well drilling ,oil well drilling, etc.

Contact Now

Wedge wire screen sand filter nozzle Made in china

Introduction :

Material: stainless steel304,316L, alloy steel.

Slot size: 0.18–0.5 mm.

Type: single wedge wire nozzle, double wedge wire nozzle.

Wedge wire screen sand filter nozzle Made in chinaWedge wire screen sand filter nozzle Made in china

Single wedge wire nozzle

Wedge wire screen sand filter nozzle Made in chinaWedge wire screen sand filter nozzle Made in china

Double wedge wire nozzle

Wedge wire screen sand filter nozzle Made in china

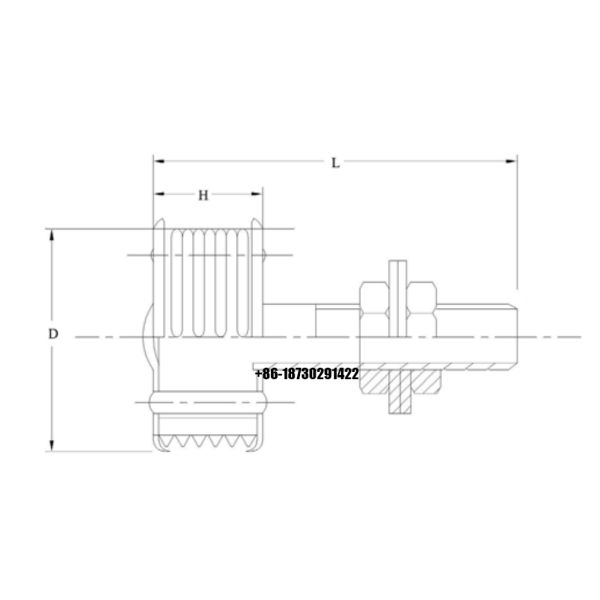

Table 1: Specification of Single Wedge Wire Nozzle

Item D
(mm) 		H
(mm)		 L
(mm)		 Slot Size
(mm) 		Flow Area
(mm)
XKH-01 45 30 180 0.18-0.5 380-493
XKH-02 45 40 190 0.18-0.5 551-690
XKH-03 53 40 190 0.18-0.5 453-597
XKH-04 53 50 200 0.18-0.5 680-710
XKH-05 53 40 235 0.18-0.5 800-920
XKH-06 57 40 190 0.18-0.5 560-670
XKH-07 57 50 200 0.18-0.5 780-905

Table 2: Specification of Double Wedge Wire Nozzle

Item D
(mm)		 L
(mm)		 H1
(mm)		 H2
(mm)		 Slot Size
(mm)		 Flow Area
(mm)
XKH-01 45 110-170 34 34 0.18-0.5 380-493
XKH-02 45 110-170 44 44 0.18-0.5 551-690
XKH-03 53 120-180 34 34 0.18-0.5 453-597
XKH-04 53 120-180 44 44 0.18-0.5 680-710
XKH-05 57 120-180 50 50 0.18-0.5 800-1000
XKH-06 60 120-180 50 50 0.18-0.5 950-1188
